Introduction

The powertrain of an electric vehicle (EV) bus consists of the main components that generate, convert, and deliver electrical energy into mechanical motion. These include:

• Battery Pack (Energy Source)
• Motor Controller (Inverter)
• Electric Motor (Drive Motor)
• Transmission (if present)
• Regenerative Braking System

1. Battery Pack (Li-ion / LiFePO₄)

The battery is the primary energy storage system in an EV bus.

• Typically high-voltage DC (between 400V–800V depending on bus size).
• Composed of series/parallel-connected lithium cells.
• Supplies direct current (DC) to the motor controller/inverter.
• Receives charge back during regenerative braking.

Think of it as the fuel tank, but instead of gasoline, it stores electricity.

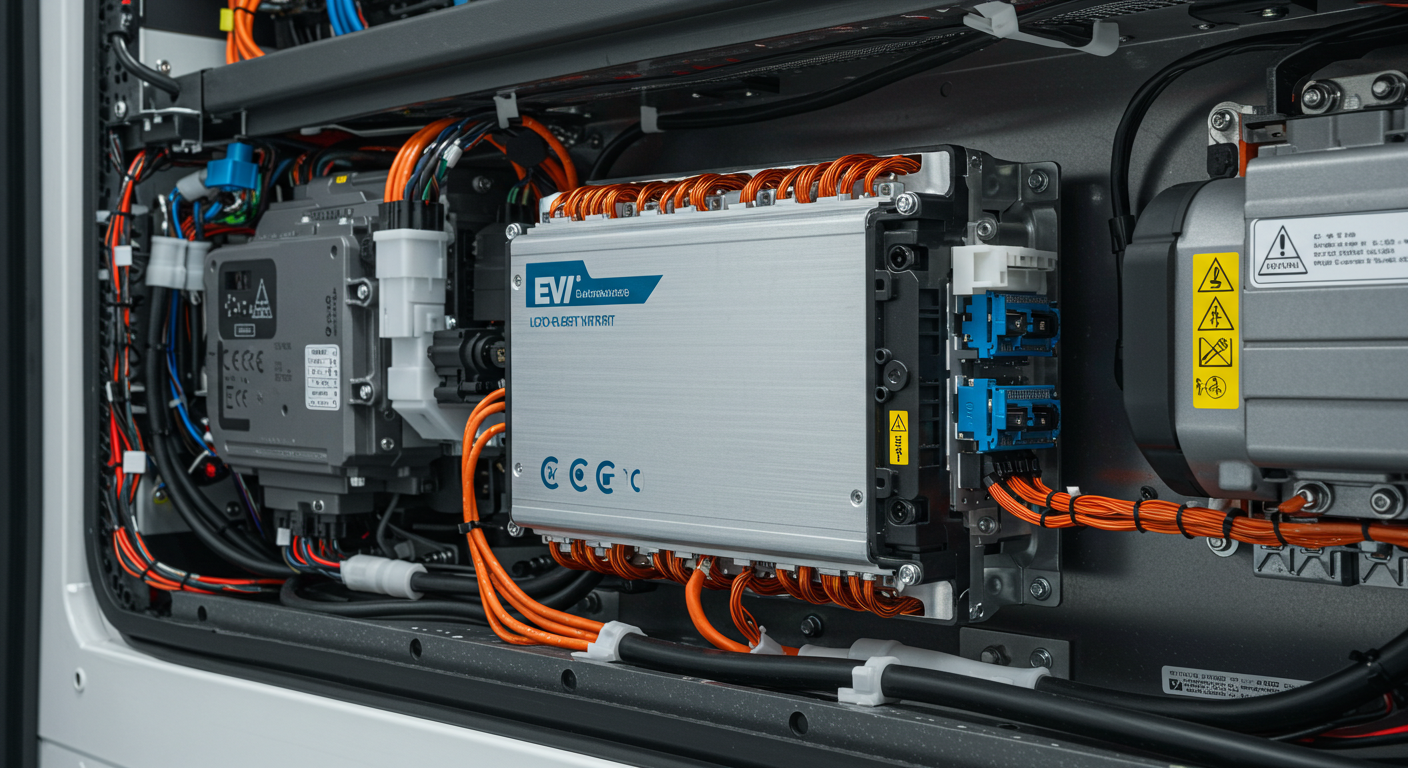

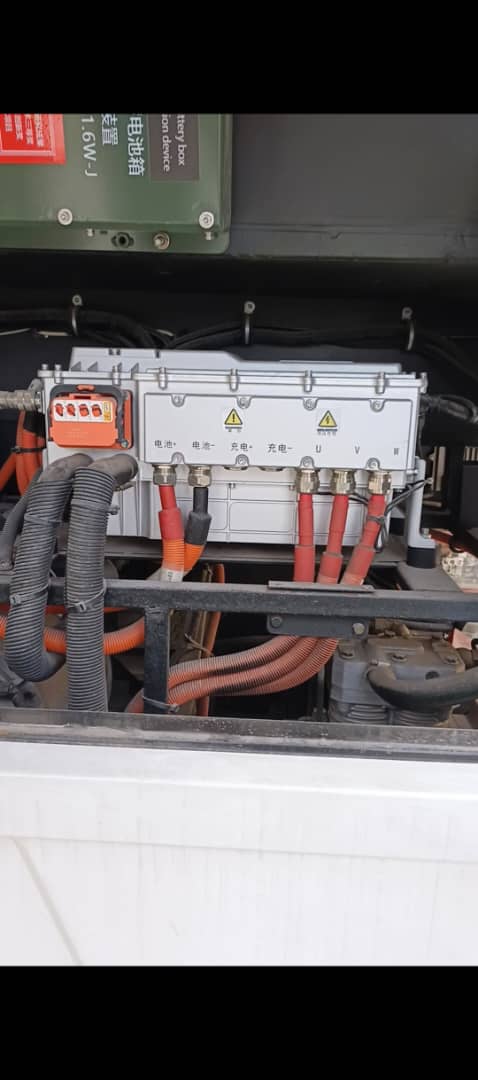

2. Motor Controller / Inverter

The controller is the brain of the EV drivetrain. It manages how energy flows between the battery and the electric motor.

Key Functions:

• DC to AC Conversion: Converts DC from the battery to 3-phase AC for the electric motor.
• Pulse Width Modulation (PWM): Modulates voltage and frequency of AC supplied to the motor.
• Torque Demand Processing: Interprets driver inputs (via the accelerator pedal) and calculates required torque and speed.
• Motor Synchronization: Keeps motor rotation in sync with the demanded power profile.
• Regenerative Braking Control: Reverses energy flow back to the battery during braking.

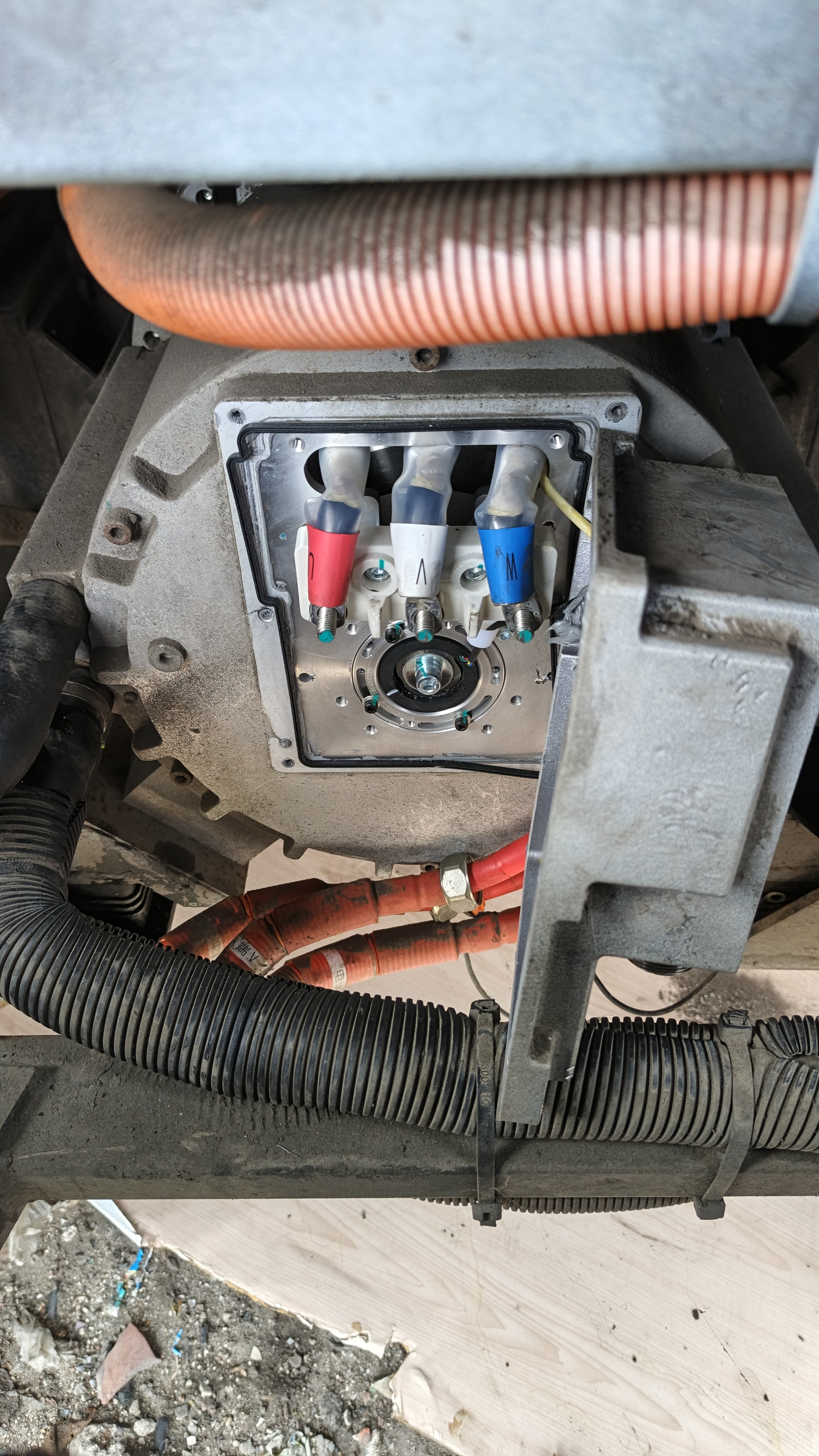

3. Electric Motor (Usually PMSM)

EV buses typically use Permanent Magnet Synchronous Motors (PMSM) or Induction Motors, with PMSM being more common in modern designs.

Key Characteristics:

• Synchronous: Rotor speed is synchronized with the stator’s rotating magnetic field.
• High Efficiency: Maintains performance across a wide speed range.
• High Torque at Low Speed: Ideal for urban bus operations.

How It Works:

• The AC current from the controller creates a rotating magnetic field in the stator.
• The rotor (with permanent magnets) rotates in sync with this field.
• Torque is produced and transmitted to the wheels (directly or via a reduction gear).

4. Torque Control

This is how the system responds to driver input (acceleration/braking):

• Accelerator pedal → controller increases frequency & voltage of AC → more torque.
• Real-time torque management helps:
  • Prevent wheel slip
  • Optimize energy use
  • Maximize motor efficiency

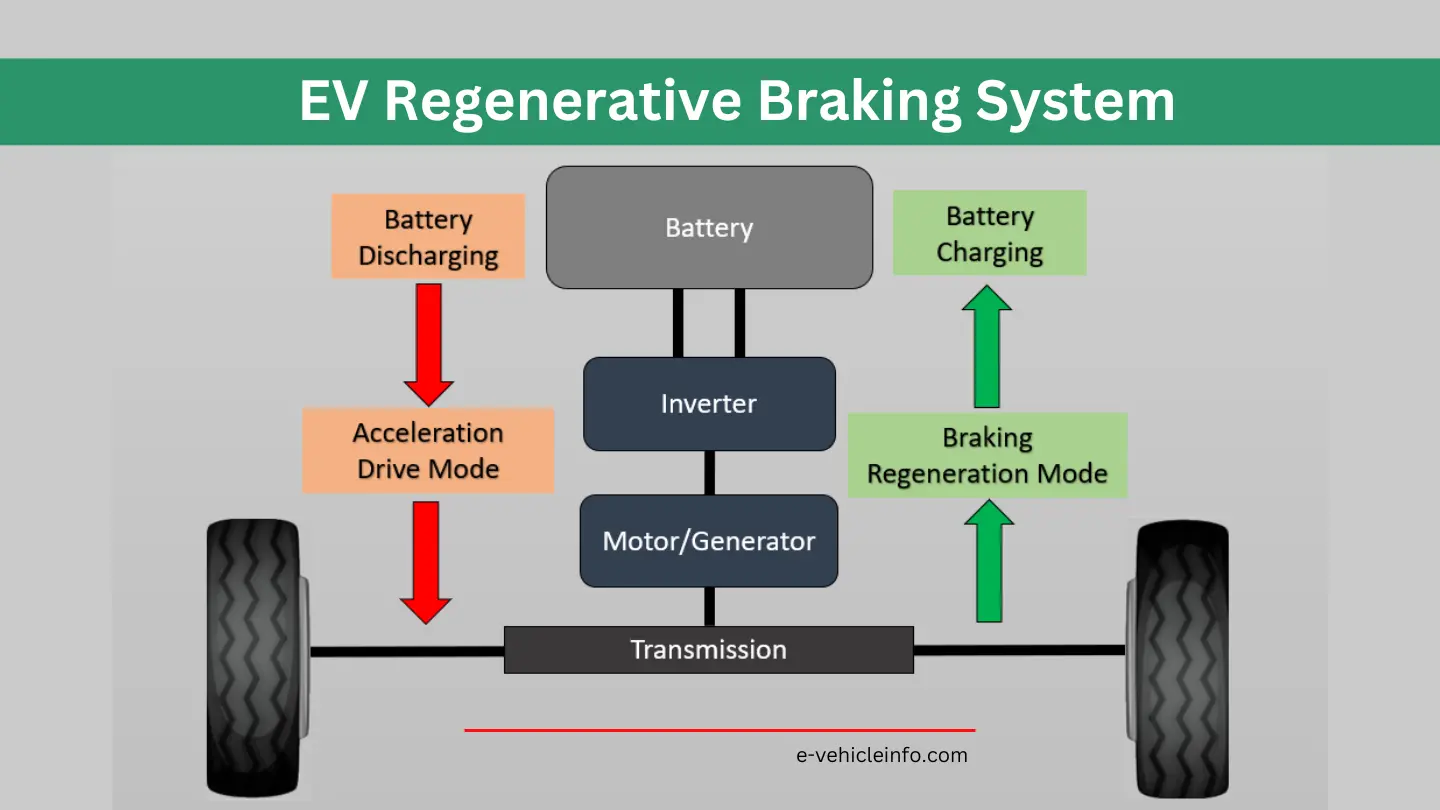

5. Regenerative Braking

A critical energy recovery feature in electric buses.

What Happens When Braking:

• Motor controller switches motor into generator mode.
• The wheels drive the motor, converting mechanical energy to electrical.
• This energy is sent back to the battery via the inverter.

Benefits:

• Reduces wear on mechanical brakes
• Improves energy efficiency and range

Efficiency depends on:

• Battery state of charge
• Motor and inverter design
• Road conditions

Summary Flow Diagram

Battery (DC Power)

Controller/Inverter (DC to 3-phase AC + logic control)

Synchronous Motor (rotational output)

Wheels (vehicle motion)

Regenerative Braking (motor becomes generator → controller → battery recharge)

How They Work Together

1. Driver presses accelerator → signal sent to controller
2. Controller calculates torque → converts DC to AC → sends to motor
3. Motor spins → drives wheels
4. During braking, motor switches to generator
5. Generated energy is recovered and sent back to the battery

All systems operate under precise coordination for:

• Efficiency
• Safety
• Performance
